25t Electro Pedestal Deck Lifting Telescopic Boom Crane

  • 1
  • 2
  • 3

Brand Name : OUCO

Model Number : OUCO-TB-1T30M

Certification : ISO9001/CE/ABS/CCS/BV

Place of Origin : Jiangsu, China

MOQ : 1 set

Supply Ability : 100 sets per year

Delivery Time : 90 days

Packaging Details : Shipping Container/Wood Crate/nude

SWL : 1t30m

Type : telescopic boom

working condition : marine or offshore

max. working radius : 30m

min. working radius : 3 m

Slewing angle : 360 degree

Luffing angle : 75 degree

Hoisting speed : 15m/min

Price : Negotiation

Contact Now

25t Electro Pedestal Deck Lifting Telescopic Boom Crane

Main Features And Advantages

1.Easy maintenance at all situation

2.Self contained unit with integrated hydraulic power pack
3.Fail-safe brakes on all movements
4.Fully enclosed and equipped operator cabin with air condition
5.The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load
6.Base on many year's design and fabrication experience of crane and other similar equipment
7.Suitable for all kinds of ships and low power consumption and high efficiency

8.Welded and high strength box boom for easy maintenance

9.With Many safety protection devices---hook up limiter and overload limiter, emergency stop button

Specification

SWL 1T@30M&10T@25M
MAX WORKING RADIUS 30m
MIN WORKING RADIUS 3m
HOISTING SPEED 0~12m/min
HOISTING HEIGHT 30m
SLEWING SPEED ~0.5r/min
SLEWING ANGLE 360°
LUFFING TIME ~ 70s
EXTENSION TIME ~150s
WORKING CONDITION

TRIM ≤2°

HEEL ≤5°
ELEC-MOTOR POWER Y160K-4-H
POWER 75kw
Speed 1475r/min
POWER RESOURCE AC415V/50HZ
PROTECT CLASS IP56
INSUKATE CLASS F
WORKING TYPE S1

General Arrangement

25t Electro Pedestal Deck Lifting Telescopic Boom Crane

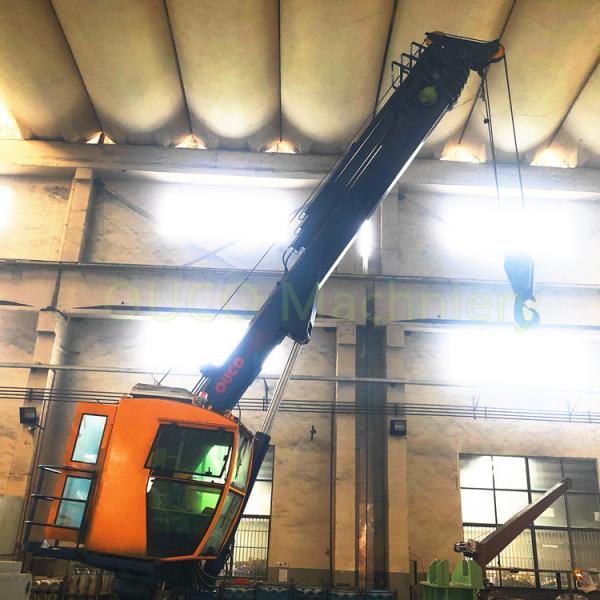

Manufacturing at OUCO workshop

25t Electro Pedestal Deck Lifting Telescopic Boom Crane
